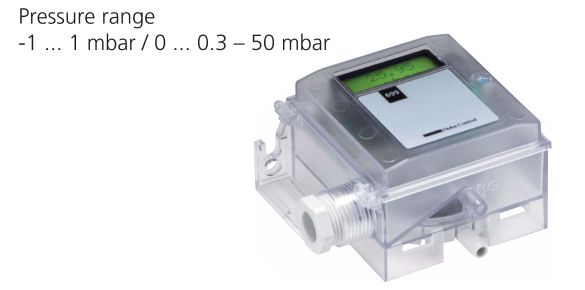

“UNIVERSAL DIFF. PRESSURE TRANSMITTER 699
Power supply: 3 wire models: 13.5-33Vdc/24Vac; 2 wire models: 8-33Vdc
Pressure ranges: 0 to 100% FS, -10 to 90% FS, -100 to +100% FS Full scale adjustable by DIP switch – 3 ranges
Output signal: 3 wire models: 0-10V, 0/4-20mA; 2 wire models: 4-20mA Sensitive to mounting position (vertical mounting)

Other ranges on request”
699.930211 Without display, range:

– 50 to + 50Pa, output: 0-10V, 3 wire

699.930215 Without display, range

: – 50 to + 50Pa, output: 4-20mA, 2 wire
699.910211 Without display, range

: 0-30/50/100Pa, output: 0-10V, 3 wire
699.910215 Without display, range:

0-30/50/100Pa, output: 4-20mA, 2wire
699.913211 Without display, range:

100/300/500Pa, output: 0-10V, 3 wire
699.913215 Without display, range:

100/300/500Pa, output: 4-20mA, 2wire
699.9302211 With display, range:

– 50 to + 50Pa, output: 0-10V, 3 wire
699.9302251 With display, range:

– 50 to + 50Pa, output: 4-20mA, 2 wire
699.9102211 With display, range:

0-30/50/100Pa, output: 0-10V, 3 wire
699.9102251 With display, range:

0-30/50/100Pa, output: 4-20mA, 2wire
699.9132211 With display, range:

100/300/500Pa, output: 0-10V, 3 wire
699.9132251 With display, range:

100/300/500Pa, output: 4-20mA, 2 wire

100064 Connection kit (tube & fittings)

“DIFFERENTIAL PRESSURE TRANSMITTER EGP
Supply voltage: 24Vac/dc, IP 65
Monitoring of dusty air or polluted air with chemicals Double membrane technology – operates in any position Output:
0-10Vdc”
EGP100F101 Without display, measuring range: +/- 75Pa
EGP100F201 Without display, measuring range: +/- 150Pa
EGP100F301 Without display, measuring range: 0 to 150Pa
EGP100F401 Without display, measuring range: 0 to 300Pa
EGP100F102 Without display, measuring range:
+/- 25Pa to +/- 75Pa
EGP100F202 Without display, measuring range:
+/- 50Pa to +/- 150Pa
EGP100F302 Without display, measuring range:
0 to 150Pa, 0-10V, lin., sq root curve
EGP100F402 Without display, measuring range:
0 to 300Pa, 0-10V, lin., sq root curve
EGP100F111 With display, measuring range:
+/- 75Pa, zero button
EGP100F211 With display, measuring range:
+/- 150Pa, zero button
EGP100F311 With display, 150Pa, 0-10V, linear
EGP100F411 With display, 300Pa 0-10V, linear
EGP100F112 With display, measuring range:
+/- 25Pa to +/- 75Pa, zero button
EGP100F212 With display, measuring range:
+/- 50Pa to +/- 150Pa, zero button
EGP100F312 With display, measuring range:
0 to 150Pa, 0-10V, lin., sq root curve
EGP100F412 With display, measuring range:
0 to 300Pa, 0-10V, lin., sq root curve
10240300 Connection kit (tube & fittings)

“FLOW PROBE FOR VAV APPLICATIONS
Fits ducts from DN80 to DN400
Can be used in aggressive atmosphere
Should be shortened according to need on site”
XAFP100F001 Flow probe, L = 396mm
