KR85.100-5-IP54 Range: 35 – 95ºC, 1 external & 1 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 100 mm
KR85.101-5-IP54 Range: 35 – 95ºC, 1 external & 1 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 200 mm
KR85.400-5-IP54 Range: 35 – 95C, 2 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 100 mm
KR85.401-5-IP54 Range: 35 – 95ºC, 2 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 Vac, pocket length 200 mm
KR85.230-5-IP54 Range: 35 – 95ºC, 1 external setpoint adjuster
Range: 50 – 110ºC, 1 internal setting limiter with man. reset
2 x SPDT, 15 (8)A @ 250 Vac, pocket length 100 mm
5-IP54 Range: 35 – 95C, 2 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 100 mm
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 100 mm
KR85.101-5-IP54 Range: 35 – 95ºC, 1 external & 1 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 200 mm
KR85.400-5-IP54 Range: 35 – 95C, 2 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 100 mm
KR85.401-5-IP54 Range: 35 – 95ºC, 2 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 Vac, pocket length 200 mm
KR85.230-5-IP54 Range: 35 – 95ºC, 1 external setpoint adjuster
Range: 50 – 110ºC, 1 internal setting limiter with man. reset
2 x SPDT, 15 (8)A @ 250 Vac, pocket length 100 mm
5-IP54 Range: 35 – 95C, 2 internal setpoint adjuster
2 x SPDT, 15 (8)A @ 250 VAC, pocket length 100 mm
Stem-Type thermostat with pocket
KR80.008-8-IP54 Range: 40 – 110ºC, external setpoint adjuster
1 x SPDT, 15 (8)A @ 250 Vac, pocket length 100 mm
KR80.006-8-IP54 Range: 50 – 130ºC, external setpoint adjuster
1 x SPDT, 15 (8)A @ 250 Vac, pocket length 100 mm
KR80.102-8-IP54 Range: 40 – 110ºC, internal setpoint adjuster
1 x SPDT, 15 (8)A @ 250 Vac, pocket length 100 mm
KR80.106-8-IP54 Range: 50 – 130ºC, external setpoint adjuster
1 x SPDT, 15 (8)A @ 250 Vac, pocket length 100 mm
Other ranges available
Please contact us and discuss your application
Industrial Room Thermostat
INDUSTRIAL ROOM THERMOSTAT
Setpoint range 0 to 45ºC, switching diff. 1.8 to 2.5K
1 x SPDT 10(2)A @ 400Vac
IP44
Setpoint range 0 to 45ºC, switching diff. 1.8 to 2.5K
1 x SPDT 10(2)A @ 400Vac
IP44
Industrial Capillary thermostat
Capillary: 1.8m
1 x SPDT 15(2)A @ 250Vac IP65
JET-110X Setting range: -35 … +30ºC
Switching differential 2 … 20 K
JET-120X Setting range: 0 … 60ºC
Switching differential 2 … 20 K
JET-130X Setting range: 40 … 100ºC
Switching differential 2 … 20 K
JET-140X Setting range: 70 … 130ºC
Switching differential 2 … 20 K
JET-150 Setting range: 100 … 280ºC
Switching differential 8 … 50 K
Internal setpoint adjuster
JET-110XF Setting range: -35 … +30ºC
Switching differential 2 … 20 K
JET-120XF Setting range: 0 … 60ºC
Switching differential 2 … 20 K
JET-130XF Setting range: 40 … 100ºC
Switching differential 2 … 20 K
JET-140XF Setting range: 70 … 130ºC
Switching differential 2 … 20 K
JET-150F Setting range: 100 … 280ºC
Switching differential 8 … 50 K
1 x SPDT 15(2)A @ 250Vac IP65
JET-110X Setting range: -35 … +30ºC
Switching differential 2 … 20 K
JET-120X Setting range: 0 … 60ºC
Switching differential 2 … 20 K
JET-130X Setting range: 40 … 100ºC
Switching differential 2 … 20 K
JET-140X Setting range: 70 … 130ºC
Switching differential 2 … 20 K
JET-150 Setting range: 100 … 280ºC
Switching differential 8 … 50 K
Internal setpoint adjuster
JET-110XF Setting range: -35 … +30ºC
Switching differential 2 … 20 K
JET-120XF Setting range: 0 … 60ºC
Switching differential 2 … 20 K
JET-130XF Setting range: 40 … 100ºC
Switching differential 2 … 20 K
JET-140XF Setting range: 70 … 130ºC
Switching differential 2 … 20 K
JET-150F Setting range: 100 … 280ºC
Switching differential 8 … 50 K
Universal Thermostat TUC series (supercedes RAK series)
Variants as temperature monitors (TW), safety temperature monitors (STW), temperature limiters
(TB) or safety temperature limiters (STB)
• Thermostat with remote sensor
• Clamp-on thermostat
• Capillary tube thermostat with or without thermowell
• Double thermostat, e.g. as TW and STB
• Certified as per EN 14597 (TUC207F003 and TUC407F001)
• As per PED 97/23/EC (2014/68/EU) classified as cat. IV (TUC207F003 and TUC407F001)
• The shift in the change-over point is minimised due to the temperature compensation.
• 100 mm thermowell supplied.
TUC101F003 -10…50 °C TW Approx. 4.2 K 1.6 m 100 mm, brass 140 °C
TUC102F001 5…30 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC105F001 15…95 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC106F001 40…120 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC107F001 50…130 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC108F001 80…160 °C TW Approx. 5.6 K 0.7 m 100 mm, stainless
steel 200 °C
(TB) or safety temperature limiters (STB)
• Thermostat with remote sensor
• Clamp-on thermostat
• Capillary tube thermostat with or without thermowell
• Double thermostat, e.g. as TW and STB
• Certified as per EN 14597 (TUC207F003 and TUC407F001)
• As per PED 97/23/EC (2014/68/EU) classified as cat. IV (TUC207F003 and TUC407F001)
• The shift in the change-over point is minimised due to the temperature compensation.
• 100 mm thermowell supplied.
TUC101F003 -10…50 °C TW Approx. 4.2 K 1.6 m 100 mm, brass 140 °C
TUC102F001 5…30 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC105F001 15…95 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC106F001 40…120 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC107F001 50…130 °C TW Approx. 5.6 K 0.7 m 100 mm, brass 200 °C
TUC108F001 80…160 °C TW Approx. 5.6 K 0.7 m 100 mm, stainless
steel 200 °C
Switchboard Thermostat
Setpoint range 10 to 60ºC, switching differential ~ 4 – 7 K
Installation on DIN rail ideal for swichboard applications
For protection of electrical/electronic components inside switch boards
Installation on DIN rail ideal for swichboard applications
For protection of electrical/electronic components inside switch boards
Duct Mount with external reset
JTU-3 Setpoint range 20 to 100ºC;
Hidden setpoint
1 SPDT 15(8)A @ 250 VAC
Capillary length: 350 mm
IP40
Hidden setpoint
1 SPDT 15(8)A @ 250 VAC
Capillary length: 350 mm
IP40

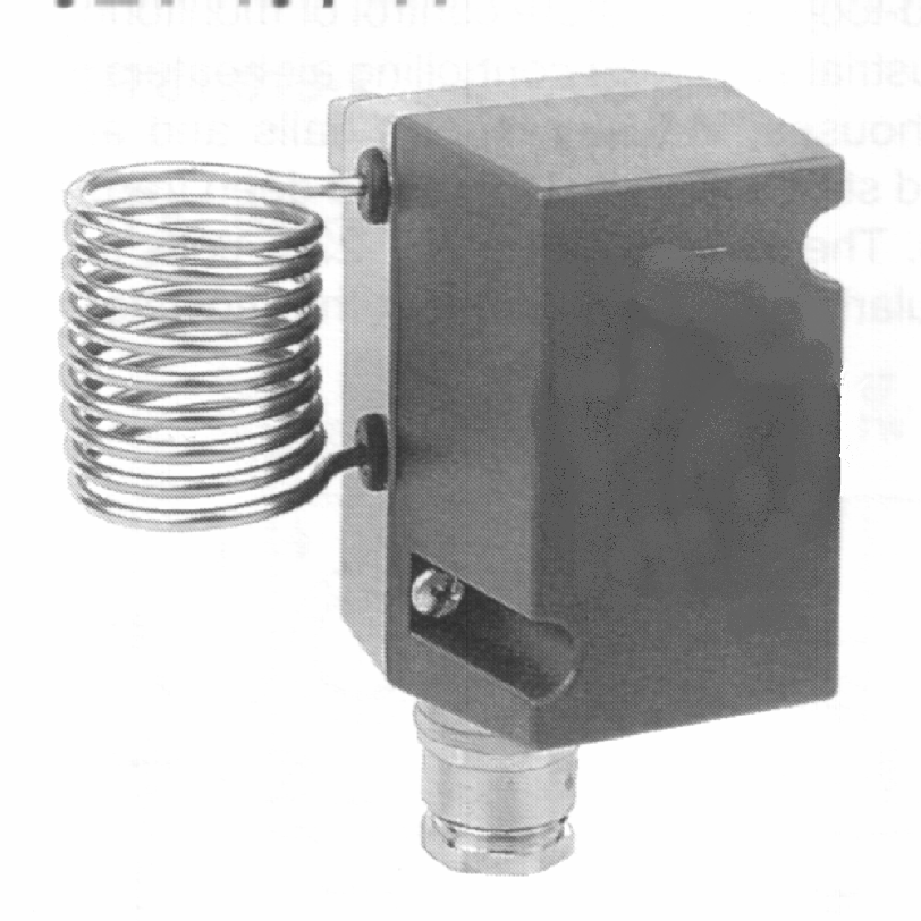

Plant Room Thermostat
JET-41F Setpoint range 0 to 70ºC, fixed diff. 1.5K,
Hidden setpoint
1 x SPDT 15(8) A @ 250V
IP 54
Hidden setpoint
1 x SPDT 15(8) A @ 250V
IP 54
Lift Motor Room thermostat
JET-31 Dual thermostat
Hidden setpoint
Thermostat 1 10 – 45ºC
Thermostat 2 0 – 35ºC
Differential of both is 1ºK fixed
2 x SPDT 15 (8) A @ 250V
Housing IP65
Hidden setpoint
Thermostat 1 10 – 45ºC
Thermostat 2 0 – 35ºC
Differential of both is 1ºK fixed
2 x SPDT 15 (8) A @ 250V
Housing IP65
Electronic Fan Coil Thermostat with on/off fan switch
KTRRB-117.128 Operating voltage: 230 VAC/(50/60) Hz
H & C (4 pipe system) – H or C (2 pipe system) via jumper position
switching difference: approx. 1K
neutral zone: approx. 2K permanently
on/ff switch
3 speed fan switch
H: 5 (1) A; C:5 (1) A; fan 6 (2) A; all 3 @ 230VAC
H & C (4 pipe system) – H or C (2 pipe system) via jumper position
switching difference: approx. 1K
neutral zone: approx. 2K permanently
on/ff switch
3 speed fan switch
H: 5 (1) A; C:5 (1) A; fan 6 (2) A; all 3 @ 230VAC
Single stage thermostat, bimetal type
SINGLE STAGE, BIMETAL TYPE
Supply voltage 230 VAC
with thermal feedback, switching diff 0.5K
RTBSB-001.010 Mechanical, Heating or Cooling with external setting 5 – 30C
H: 10 (4)A@230VAC; C: 5(2)A@230VAC
RTBSB-001.048 Mechanical, Heating or Cooling with external setting 10 – 60c
H: 10 (4)A@230VAC; C: 5(2)A@230VAC
RTBSB-001.910 Mechanical, Heating or Cooling with internal setting 5 -30CH: 10 (4)A@230VAC; C: 5(2)A@230VAC
Supply voltage 230 VAC
with thermal feedback, switching diff 0.5K
RTBSB-001.010 Mechanical, Heating or Cooling with external setting 5 – 30C
H: 10 (4)A@230VAC; C: 5(2)A@230VAC
RTBSB-001.048 Mechanical, Heating or Cooling with external setting 10 – 60c
H: 10 (4)A@230VAC; C: 5(2)A@230VAC
RTBSB-001.910 Mechanical, Heating or Cooling with internal setting 5 -30CH: 10 (4)A@230VAC; C: 5(2)A@230VAC
Single stage thermostat, bellows type
Mechanical Heating or cooling
TSO 670 F001 Mechanical heating or cooling;
TSO672 F001 Mechanical Heating – Off-Cooling switch;
Setpoint range 5 – 30ºC
without thermal feedback, switching diff 1.3K
